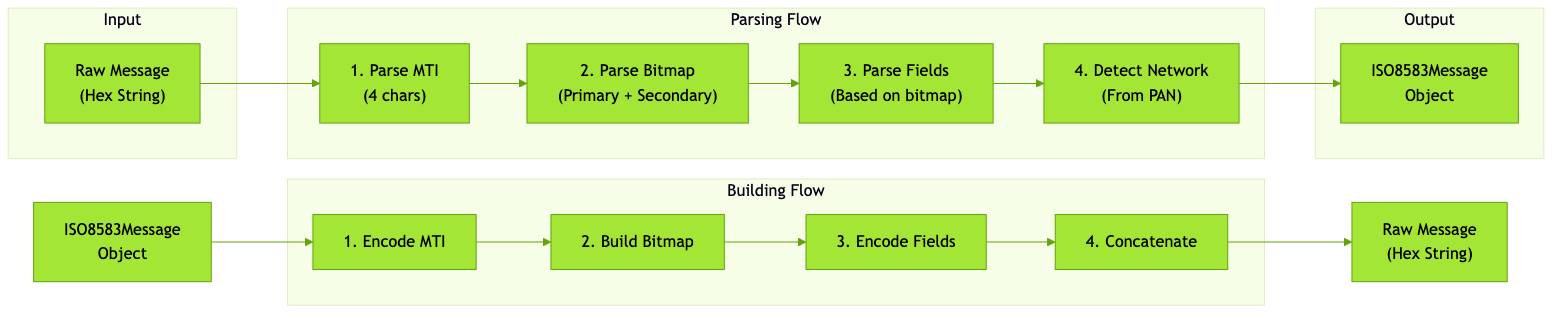

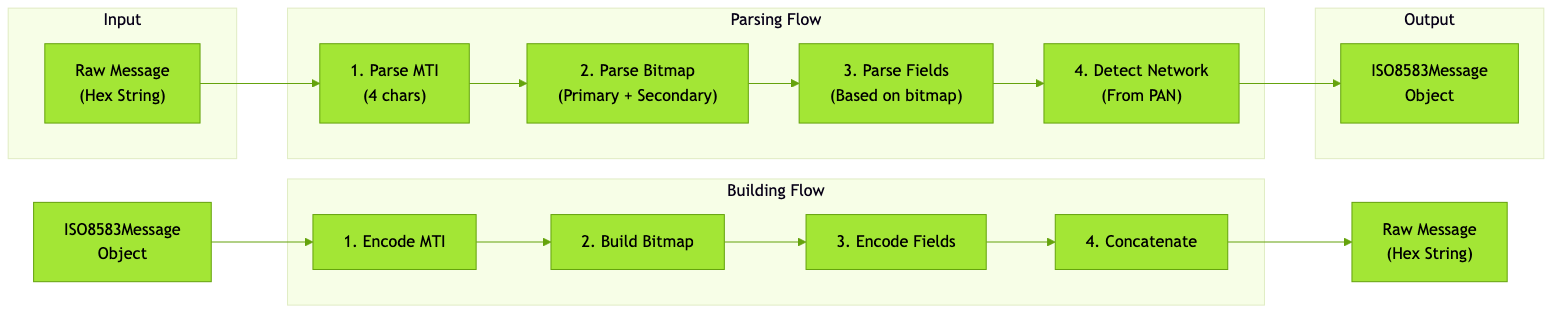

Parsing Flow
Raw Message String
│
▼
┌───────────────────┐
│ ISO8583Parser │
│ │
│ 1. _parse_mti() │──▶ Extract 4-character MTI
│ │
│ 2. _parse_bitmap()│──▶ Parse primary bitmap (8 bytes hex)
│ │ Check bit 1 for secondary bitmap
│ │
│ 3. _get_present_ │──▶ Convert bitmap to list of
│ fields() │ present field numbers
│ │
│ 4. _parse_fields()│──▶ For each present field:
│ │ - Get field definition
│ │ - Parse based on type (fixed/LLVAR/LLLVAR)
│ │ - Detect network from PAN
│ │
│ 5. _parse_emv() │──▶ If Field 55 present:
│ (optional) │ Parse TLV tags
│ │
└───────────────────┘
│
▼
ISO8583Message
Parser Methods
| Method | Purpose |
|---|---|
parse() | Main entry point, orchestrates parsing |
_parse_mti() | Extract MTI (positions 0-3) |
_parse_bitmap() | Parse 16-hex-char primary bitmap |
_get_present_fields() | Convert bitmap bits to field numbers |
_parse_fields() | Parse individual field values |
_parse_fixed_field() | Parse fixed-length field |
_parse_variable_field() | Parse LLVAR/LLLVAR field |
_detect_network() | Identify card network from PAN |
Building Flow
ISO8583Message
│
▼
┌───────────────────┐
│ ISO8583Builder │
│ │
│ 1. Format fields │──▶ For each field:
│ │ - Get field definition
│ │ - Apply padding/formatting
│ │
│ 2. Validate │──▶ ISO8583Validator.validate_message()
│ │ - Check required fields
│ │ - Validate field types
│ │ - Network-specific rules
│ │
│ 3. Build MTI │──▶ Append 4-character MTI
│ │
│ 4. Build bitmap │──▶ Create bitmap from present fields
│ │ - Primary: fields 1-64
│ │ - Secondary: fields 65-128
│ │
│ 5. Build fields │──▶ For each field in order:
│ │ - Add length prefix (LLVAR/LLLVAR)
│ │ - Append field value
│ │
└───────────────────┘
│
▼
Raw Message String
Builder Methods
| Method | Purpose |
|---|---|
build() | Main entry point, orchestrates building |
_format_field_value() | Apply padding and formatting rules |
_build_bitmap() | Generate bitmap from present fields |
_build_field() | Build individual field with length prefix |
Validation Flow
ISO8583Message
│
▼
┌────────────────────────┐
│ ISO8583Validator │
│ │
│ 1. validate_mti() │──▶ Check MTI format (4 digits)
│ │ Validate message class/function
│ │
│ 2. validate_bitmap() │──▶ Check bitmap format (16 hex)
│ │ Verify field presence matches
│ │
│ 3. validate_fields() │──▶ For each field:
│ │ - Check type (n/a/an/b)
│ │ - Validate length
│ │ - Apply field-specific rules
│ │
│ 4. Network validation │──▶ Check required fields present
│ (if network set) │ Apply network-specific rules
│ │
└────────────────────────┘
│
▼
List[str] (errors)
EMV Data Flow
Field 55 contains EMV chip card data in TLV (Tag-Length-Value) format:Field 55 Raw Data
│
▼
┌────────────────────────┐
│ parse_emv_data() │
│ │
│ While data remains: │
│ 1. Read tag (1-3 bytes)│
│ 2. Read length (1-3 bytes)│
│ 3. Read value (length bytes)│
│ 4. Store in dictionary │
│ │
└────────────────────────┘
│
▼
Dict[tag, value]
e.g., {"9F26": "ABCD...", "9F27": "80"}
Object Pooling (High-Throughput)
For high-throughput scenarios,MessagePool reduces object allocation:
┌──────────────────┐
│ MessagePool │
│ │
│ acquire() │──▶ Get message from pool or create new
│ │
│ release() │──▶ Reset and return message to pool
│ │
│ Parser uses: │
│ pool.acquire() │──▶ Get blank message
│ ... parse ... │
│ return message │
│ │
│ User returns: │
│ pool.release() │──▶ Message reused next time
│ │
└──────────────────┘
Cython Acceleration
When Cython extensions are compiled, critical functions are replaced:| Python Function | Cython Function | Speedup |
|---|---|---|
_parse_mti() | parse_mti_fast() | ~2x |
_parse_bitmap() | parse_bitmap_fast() | ~2x |
_get_present_fields() | get_present_fields_fast() | ~1.5x |
_validate_pan_luhn() | validate_pan_luhn_fast() | ~3x |
try:
from ._parser_fast import parse_bitmap_fast
_USE_CYTHON = True
except ImportError:
_USE_CYTHON = False
